The Coswheel Y16 Ebike offers a top speed of 28 mph (45 km/h), The bike is equipped with a 48V peak 1000W (rated 750W) brushless rear hub motor generating 50 N·m of torque.

Performance

• Suitable Height: 4'11" - 5'11" (4.9ft-5.9ft)

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
• Battery: 48V 15Ah Battery (Lithium 18650 Cells)
• Energy: 720Wh
• Front Suspension: Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel
• Rear Suspension: Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm
• Brakes: Double Disc Brakes, Equipped with 160mm Stainless Brake Disc
• Tires: ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI
• Throttle: Grip Twist Throttle

Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours

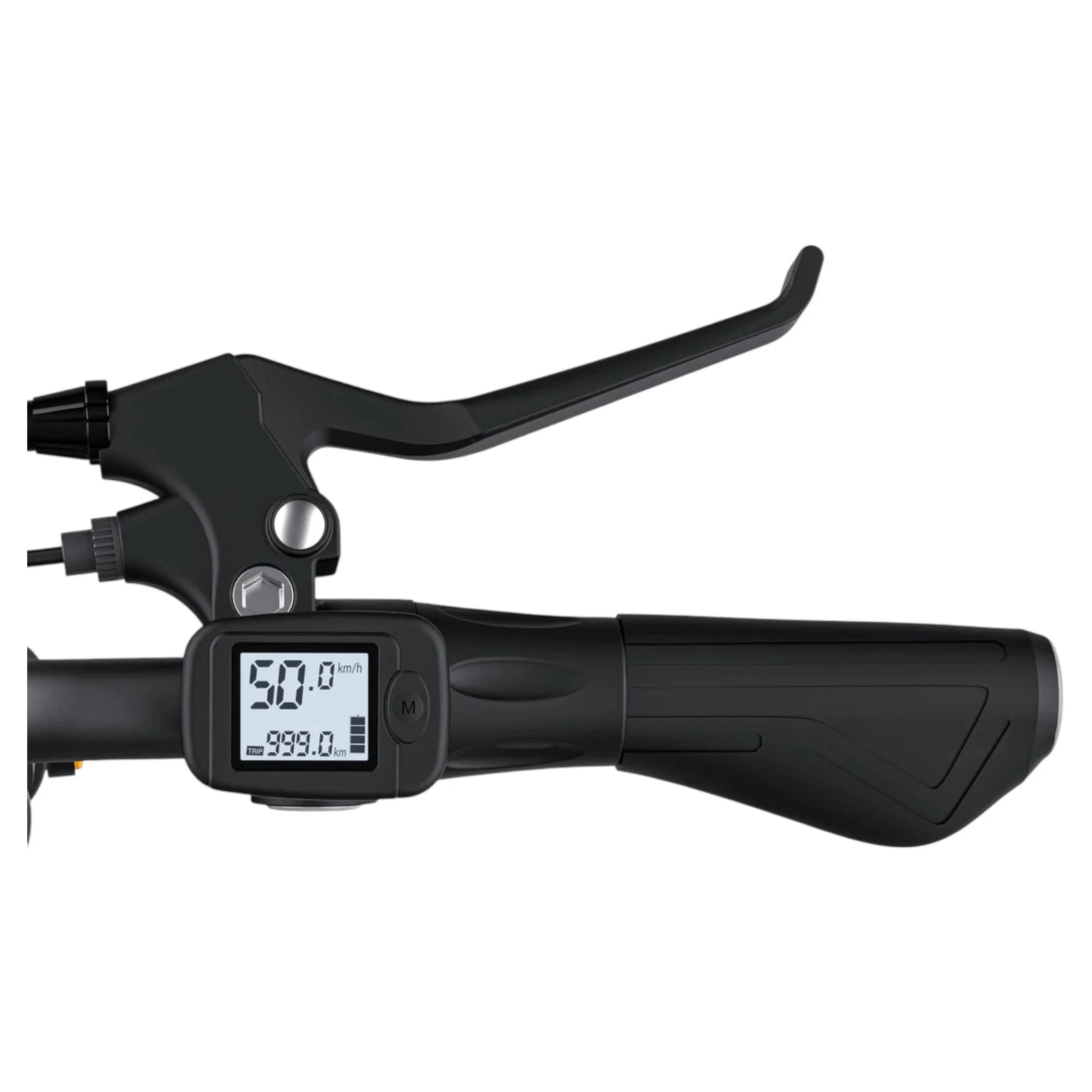

• Display: Easy Read LCD Display
• Controller: 48V 22A
• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 3 Levels
• Sensors: Speed Sensor

Components

• Frame: Iron Frame
• Pedal: Black
• Crank: 46T Double Cover*Ffish Shape
• Rear Derailleur: Single Speed
• Chain: Anti-rust, 116 Mesh
• Handlebars: Black, 25.4*L:640mm*H:180mm, 17°

Geometry

• Suitable Height: 4'11" - 5'11" (4.9ft-5.9ft)
• Seat Height: 29.53" (75cm)
• Bike Height: 39.37" (100cm)
• Wheelbase: 38.58" (98cm)
• Handlebar Width: 25.59" (65cm)
• Bike Weight: ≥97lbs (with Battery) (≥44kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 60.24" * 25.59" *39.37" (153*65*100cm)
• Package Size: 55.91" * 12.60" * 32.28" (142*32*82cm)
